16. Harness engineering

Harness Engineering is the discipline of designing, implementing, and improving the operating environment around Agents. It makes agent execution reproducible, observable, bounded, recoverable, and replaceable through explicit context, tool, state, loop, permission, lifecycle, telemetry, and conformance contracts.

The problem

Interactive coding agents assume a person can watch a terminal, answer prompts, detect stalls, and judge completion. Production workers cannot rely on that human glue. The harness boundary therefore needs structured events, explicit control actions, recoverable sessions, and external authority that survives product and model changes.

How it works

Harness engineering

Harness Engineering asks concrete questions: how context is assembled and refreshed; how tools and models are exposed; where permissions are enforced; how the Agent Loop observes progress and stops; how state, checkpoints, and recovery behave; how budgets constrain execution; what telemetry and artifacts are emitted; and how one Harness implementation is qualified or replaced.

The Harness depends on adjacent components without absorbing them. The Runtime hosts and preserves execution. The Sandbox isolates effects. The Orchestrator advances a Work Graph. The Control Plane owns identity, authority, policy, approvals, budgets, and release decisions. Tests and independent verifiers establish whether an outcome is acceptable. Execution boundaries and canonical terminology is the authoritative map.

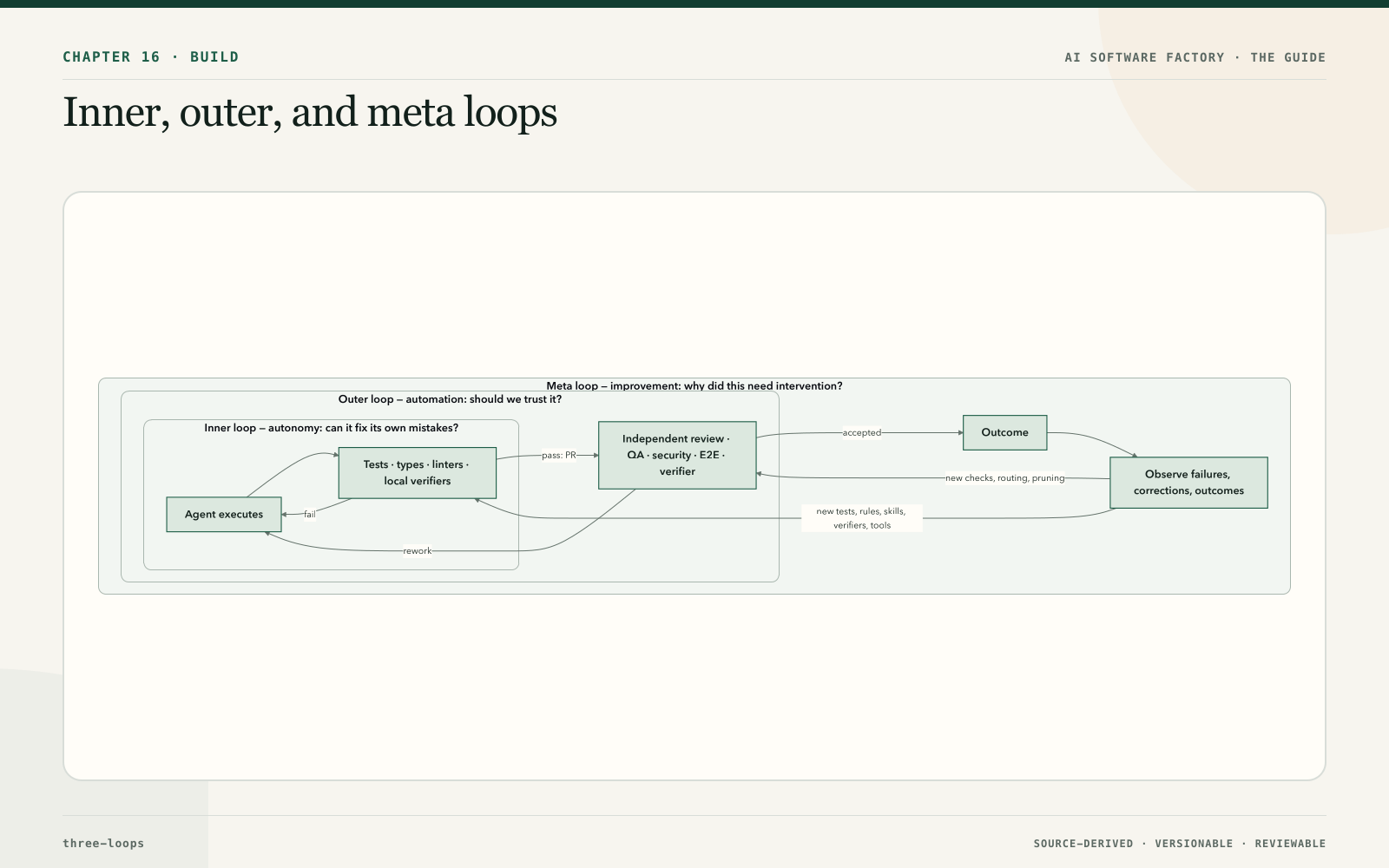

Inner feedback loop, outer verification loop, meta learning loop

This chapter uses inner, outer, and meta only for feedback scopes. They are not Harness components. The Agent Loop is the worker's plan-act-observe-evaluate cycle; these three feedback loops describe how quickly results feed back into execution, verification, and system improvement.

The objectives are the reason to keep the loops apart. Inner-loop improvements drive autonomy: fewer human corrections per task, because the agent fixed it before anyone looked. Outer-loop improvements drive automation: less human review before acceptance, because independent verification established the trust a reviewer used to supply. The meta loop, which Chapter 40 treats in depth, drives improvement, and it is the loop with the most leverage, because a fix to it changes every future run so that the same mistake is made only once. A team that pours effort into the inner loop and none into the outer gets a hundred correct pull requests each waiting for a human to inspect them; a team that builds the outer loop without the inner gets expensive verification of work the agent could have fixed itself.

Read diagram as text

1. Agent executes" → Tests · types · linters · local verifiers"
2. F → |"fail"| A
3. F → |"pass: PR"| Independent review · QA · security · E2E · verifier"
4. V → |"rework"| A
5. V → |"accepted"| Outcome"
6. O → Observe failures, corrections, outcomes"
7. M → |"new tests, rules, skills, verifiers, tools"| F
8. M → |"new checks, routing, pruning"| V

Harness–model co-design and harness profiles

A harness that treats every model the same is leaving performance on the table, and a harness that is built around one model is a lock-in with extra steps. The way through is a distinction: model-agnostic is not model-uniform. Model-agnostic means the factory is not structurally dependent on one provider: the contracts, the evidence, the state, and the verification are the same whichever model runs. Model-uniform would mean identical prompts, tool schemas, and workflows for every model family, and that is a different, worse thing, because model families differ in how they use tools, how they edit files, how they respond to prompt structure, and how their reasoning is best configured. Harness–model co-design optimizes the harness around each model's behaviour, tool-use patterns, and reasoning style while preserving the common contracts.

The mechanism is a layering: canonical agent contract → harness profile → model. The agent contract above stays fixed. A harness profile is the model-specific configuration of how the common harness interacts with one model family, and its fields are:

The profile is versioned and evaluated like any other factory asset; the contract beneath it does not change when the profile does. That is also what makes the profile safe to specialize: a profile can be as opinionated as the model family needs, because nothing above it depends on the opinions.

The reason to invest here is a performance equation worth writing on the wall: P = f(model, harness, workflow, context, tools, feedback, verification). Never attribute everything to the model. When an agent underperforms, the model is one of seven terms, and it is usually not the cheapest one to change. The way to find out which term is at fault is harness effectiveness evaluation: a model × harness matrix. Run model X with harness A, X with B, Y with A, and Y with B on the same reference tasks, and compare success, quality, intervention count, latency, tokens, cost, and verification outcomes. If X beats Y under both harnesses, the model matters; if A beats B under both models, the harness does; if the results cross, the workflow or the profile is the term to look at. Without the matrix, every regression is blamed on whichever component changed most recently.

The matrix is the evidence for a claim this guide makes throughout: the harness is an intelligence multiplier. There are three levels of capability, and they are not the same number. Model capability is what the weights can reason about and generate. Agent capability is what the model can do with tools, context, state, and a loop around it. Factory capability is what an organization can reliably delegate, with workflows, governance, verification, economics, and learning wrapped around the agent. A better model raises the first; only harness engineering raises the second; only the factory raises the third. Model capability ≠ agent capability ≠ factory capability.

The multiplier has a cost curve, and it goes the wrong way if nobody watches it. Harness debt is the accumulated prompts, skills, rules, checks, adapters, and orchestration that once compensated for an agent limitation and no longer justify their cost, because the model improved, the workflow changed, or the check was never load-bearing. Much of it is compensatory: built to work around a temporary model weakness, then kept out of habit after the weakness was gone, unlike the institutional knowledge (architecture, policies, conventions) that no model will ever know on its own and that stays load-bearing. Harness pruning is the routine that pays it down, and it is the same shape as every other evaluation in this book: take one component → eval with it → eval without it → measure the delta → retain, simplify, or remove. A component that cannot show a delta is debt, however sensible it looked when it was added.

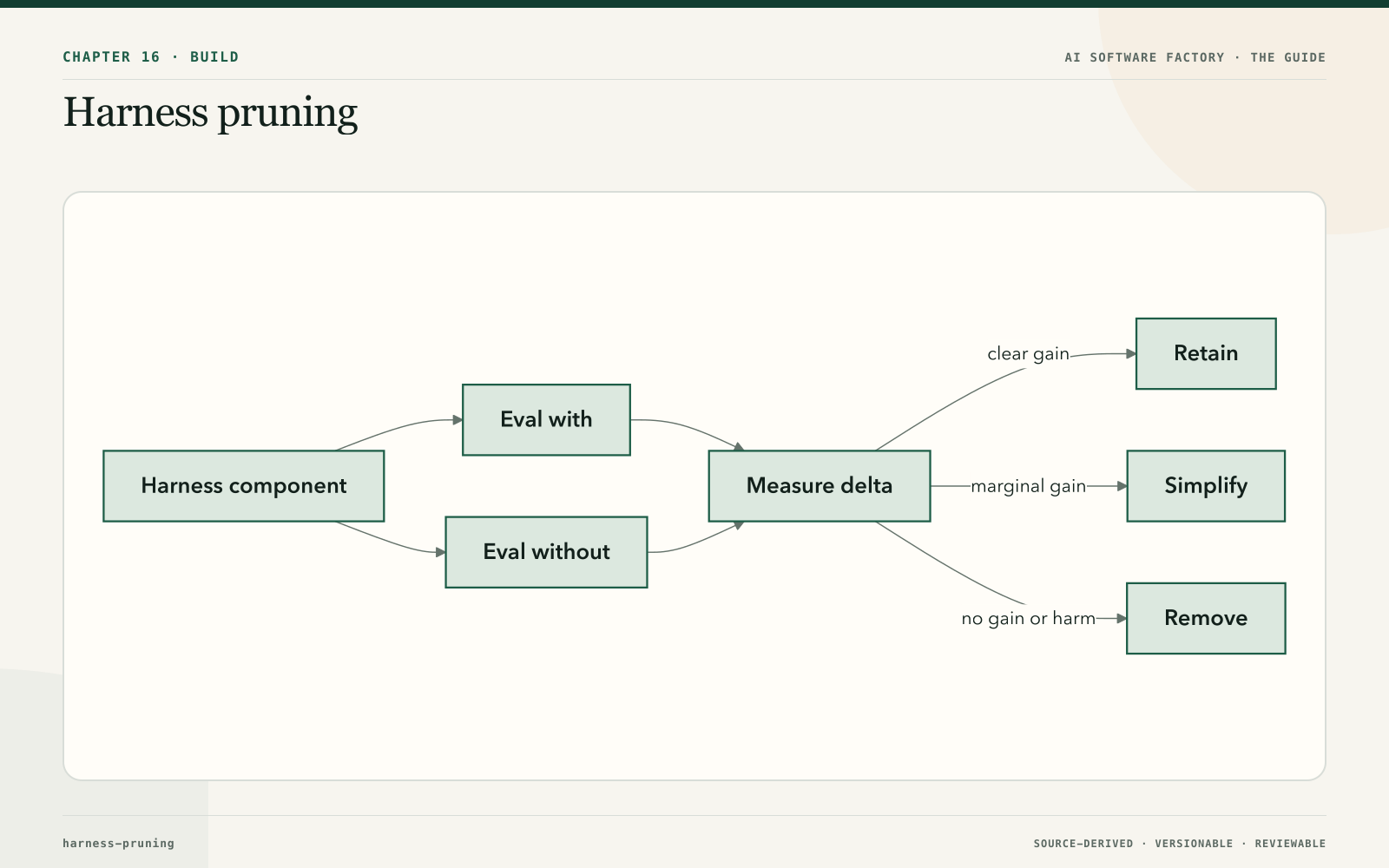

Read diagram as text

1. Harness component" → Eval with"
2. C → Eval without"
3. W & WO → Measure delta"
4. D → |"clear gain"| Retain"
5. D → |"marginal gain"| Simplify"
6. D → |"no gain or harm"| Remove"

Headless execution and the structured event stream

The first concrete integration decision is how the Factory Platform talks to a Coding Harness. A production-ready Harness should offer a headless or non-interactive mode that emits typed events or a stable structured stream, often JSON Lines. The adapter can consume the stream as it grows or archive it when the session ends. What does not work is parsing the decorative terminal rendering, which changes across releases and encodes no reliable completion semantics.

The analogy is a flight data recorder versus listening through the cockpit door. Terminal text may remain a diagnostic artifact, but the authoritative completion contract must be the structured stream. And process exit zero never means the engineering task is complete; it means the process stopped.

For every session the factory should retain:

• adapter version and native session identity;
• harness configuration, model route, instructions, and tool grants;
• context digest and environment digest;
• the ordered event stream and its ordering guarantees;
• exit state and structured completion, including unresolved work; and
• references to raw artifacts (native transcript, logs, diffs).

Lifecycle, sessions, checkpoints, and compaction

A harness session is a stateful thing that the factory needs to drive from outside. A portable harness lifecycle covers capability discovery and version negotiation; preflight and configuration validation; start, attach, resume, pause, cancel, drain, and terminate; user input and structured human-decision requests; model, tool, file, command, subagent, progress, warning, and cost events; permission and policy-decision callbacks; checkpoints, compaction, and session identity; structured terminal completion and unresolved-work reporting; artifact and receipt export; classification of timeout, crash, malformed output, and unavailable provider; secret redaction and content-retention controls; and environment teardown and reconciliation.

Two items deserve emphasis. Session resume means the Runtime and Harness adapter can reattach after a worker crash or lease expiry, which only works if the native session identity was recorded before the first tool call and the environment still exists. Compaction is the Harness summarizing working context to stay under the model's context window; the factory must record when it happened because earlier evidence may no longer be in the Model's view, and a checkpoint across a compaction boundary is materially different from one taken within it.

Hooks are integration points, not authority

Most harnesses expose lifecycle hooks: callbacks on session start, tool calls, file changes, subagent spawn, permission requests, stop, and completion. They are useful for logging, policy callbacks, credential injection, validation, notifications, and cleanup.

But a native hook is not automatically trustworthy. Before relying on one for anything consequential, the factory must know whether it is synchronous or fire-and-forget, bypassable by a flag or a config edit, ordered relative to other hooks, retryable, authenticated, and covered by the harness's own configuration hierarchy (user, project, enterprise). A hook in a user-editable settings file is a smoke detector wired to your phone: valuable, and not the fire code. Consequential policy belongs in an external authoritative control path or a qualified enforcement point, per Chapter 7.

Hooks are also where cross-Harness portability often fails. Coding Harnesses expose different events, ordering, configuration, and instruction-file conventions. Treat those differences as adapter behavior, preserve native evidence, and qualify each version against the Agent Contract.

Driving to completion with bounded loops

Bounded continuation belongs in explicit Loop and Work Graph contracts. A maximum review iterations setting caps how many review-and-repair cycles an Attempt or workflow may consume before escalation. The Harness enforces local turn, time, token, and cost limits; the Orchestrator owns durable review routing and human waits; the Control Plane supplies authority and budget. The pattern is bounded iterations, a deterministic exit condition, and a human handoff when the bound is hit. An unbounded "fix until green" loop is a spend incident waiting to happen.

The adapter contract and the capability manifest

The Factory Platform talks to a specific Harness implementation through an adapter. Each adapter publishes a Harness Capability Manifest that declares, truthfully, which lifecycle behaviors it supports and which it does not. Unsupported behavior must be visible, and adapters should fail closed: if a WorkOrder requires a capability the Harness cannot prove, such as cancellation during a tool call or verified session resume, the adapter refuses the work.

When an Agentic SDK supplies the loop, state, tracing, handoff, guardrail, or Runtime behavior behind the adapter, the manifest must pin the SDK package and version and identify which declared capabilities depend on it. An SDK upgrade is therefore a Harness implementation change: rerun the affected conformance and evaluation suites before promotion. A semantic-version claim alone is not evidence that event ordering, cancellation, session recovery, guardrail timing, or tool-call behavior stayed compatible.

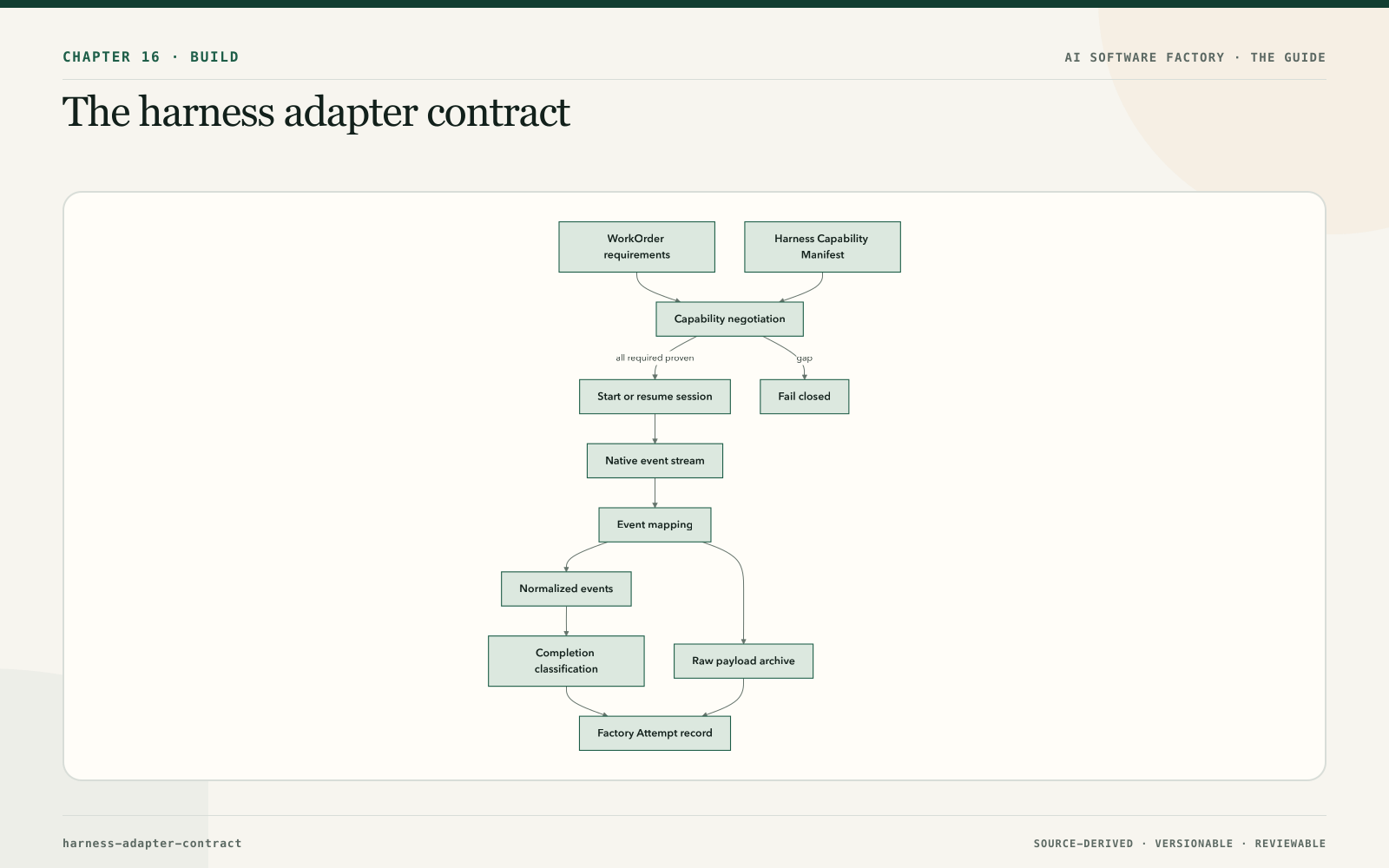

Read diagram as text

1. WorkOrder requirements" → Capability negotiation"
2. Harness Capability Manifest" → Neg
3. Neg → |"all required proven"| Start or resume session"
4. Neg → |"gap"| Fail closed"
5. Start → Native event stream"
6. Stream → Event mapping"
7. Map → Normalized events"
8. Map → Raw payload archive"
9. Norm → Completion classification"
10. Done → Factory Attempt record"
11. Raw → Attempt

Substitutability is never global. Two adapters are substitutable only for a specified workload and policy set. One may be eligible for read-only repository analysis and ineligible for code mutation or long-running recovery. The manifest plus the conformance results (below) are what let the orchestrator make that call per WorkOrder.

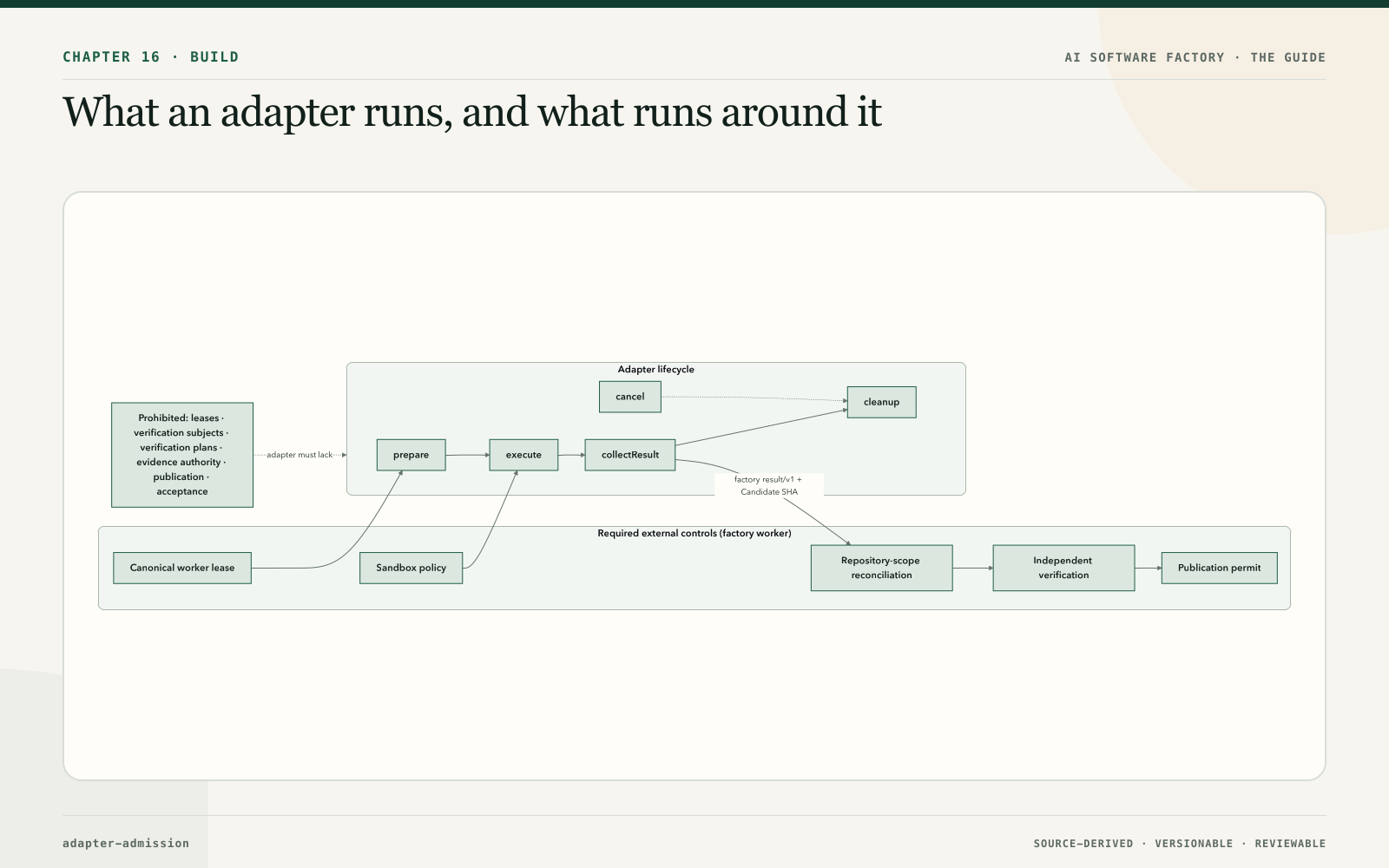

Adapter admission: prohibited authorities and required external controls

The capability manifest says what an adapter can do. Admission is the control plane's decision that a specific adapter version may be selected for governed work, and it is made against a harness contract that is the same for every engine, whether the engine is a single-session coding harness or a larger epic-delivery engine that plans, splits work into stories, and runs its own gates. Chapter 13 gives the authority table and the two admission lists from the control plane's side; this section is the adapter mechanics that make those lists checkable.

Read diagram as text

1. prepare" → execute" → collectResult" → cleanup"
2. L → A1
3. S → A2
4. A3 → |"factory-result/v1 + Candidate SHA"| R
5. R → V → P

The lifecycle is five operations. prepare receives the frozen manifest and the executor snapshot, provisions the engine's environment inside the Attempt's worktree or sandbox, and records the engine's own identity for this Attempt before any work starts. execute starts the engine and streams its native status. collectResult gathers the engine's terminal output into the shared structured result. cancel is the control plane's stop, called from a control-plane cancel command and never from the engine's side. cleanup releases the engine's resources and records what it could and could not remove. Every operation is idempotent against its Attempt, because the worker may call it twice after a crash.

The result is a shared contract. Every adapter returns the same structured result contract, factory-result/v1: the outcome class, the candidate SHA if one exists, the engine's phase at termination, the artifacts and their digests, the gate outcomes the engine observed, unresolved work, and the native payload reference. The control plane reads only this. A result without a candidate SHA is a result the control plane cannot verify, and the WorkOrder goes to BLOCKED rather than forward. The harness capability manifest (v1) sits beside the result contract and declares, per adapter version, what the engine supports for models, filesystem, git, sandbox, cancellation, and admission, and what its known limitations are; a required capability the manifest does not claim fails admission closed.

Selection is the only engine-specific step. The factory's own Attempt worker selects the adapter from the executor snapshot, then runs the five required external controls itself: it holds the canonical lease, applies the sandbox policy, reconciles changed files and the head SHA against the frozen code scope, dispatches independent verification, and publishes through the permit-gated GitHub App. There is no engine-specific worker path. An engine that wants its own lease, its own publication, or its own verifier has asked for one of the six prohibited authorities, and the answer is no.

Events are mapped, not trusted. The adapter polls or receives engine status and maps it onto the factory's canonical run events, each with the idempotency key {workOrderId}:{runId}:{engineId}:{eventType}:{sequence} so that a re-poll after a crash cannot double-count. The canonical event types are run.created, worktree.created, plan.generated, step.started, step.completed, artifact.produced, approval.required, verification.executed, failure.encountered, retry.attempted, pr.updated, run.completed, and learning.candidate.proposed. Native events that have no canonical equivalent are archived as raw payloads, not invented as new types.

Engine phases map to tendencies, never to transitions. An epic-delivery engine moves through phases such as planning, planned, approved, implementation or in progress, gate, finalizing, done, failed, rejected, and stopped. Each phase tells the control plane which WorkOrder state the work is tending toward, and the Execution Run Inspector may show it; none of them moves the WorkOrder. Done tends toward AWAITING_VERIFICATION and reaches it only when a candidate SHA exists. Failed, rejected, and stopped tend toward BLOCKED or the Attempt's terminal states. An engine's nested units of work (stories, with their own pending, running, done, failed, or blocked states) live in engine-owned nested worktrees beneath the epic worktree; the Attempt records the epic worktree and the adapter records the story tree as artifacts, so the factory can see the engine's decomposition without adopting its state machine.

Cancellation has one direction. A control-plane cancel calls the adapter's cancel, which stops the engine. Cancellation wins over any late success until terminal success has been durably reported; a stop that fails still leaves the Attempt canceled, with the cleanup outcome recorded and the worktree preserved for inspection. The engine never cancels the WorkOrder.

CI proves the adapter, operators prove the engine. Continuous integration runs the adapter against a deterministic fake-engine fixture: a stub that returns a fixed epic id, a fixed status sequence as JSON, and a fixed candidate SHA, so the lifecycle, result mapping, idempotency keys, cancellation, and cleanup can be exercised on every commit with no model in the loop. Live engine runs are operator evidence, retained against an exact revision, and are never a CI gate; a CI job that needs a real engine to pass is a job that fails for reasons unrelated to the code.

Unattended mode is not admitted. Most engines offer a "full-auto" mode that approves its own plan and proceeds without a human. That mode is not admitted in a first version. The admitted posture is manual approve-then-run: a human approves the plan in the control plane, the control plane attests that approval, and only then does the adapter start the engine. An experimental adapter is additionally flag-gated, off by default, and excluded from remote sandbox execution until it has passed the same conformance and live evidence bar as the production adapter.

How to build it

Adapter conformance suite

Test behavior, never product names. A driving test checks that the driver stops at the light; it does not ask what brand the car is. The suite should cover:

• capability truthfulness, including unsupported features failing closed;
• event ordering, duplication, loss, and redaction;
• cancellation before, during, and after tool effects;
• timeout and process-crash recovery;
• permission denial and human-decision waits;
• context compaction and session resume;
• out-of-scope filesystem and network attempts;
• output-schema violations and false completion;
• model or provider fallback visibility;
• teardown and orphan detection; and
• exact lineage from native session to factory Attempt.

Promotion of a new adapter or version additionally requires negative tests, version-upgrade tests, cancellation races, content-redaction tests, and live canaries.

What each adapter ships with

• pinned manifest and compatibility range;
• conformance results;
• security review;
• event mapping, with known loss of fidelity written down; and
• rollback path.

Harness-engineering practices that transfer

These are drawn from teams running factories today and apply to whichever harness you choose.

• Outlaw local configuration. Tessl checks every skill, hook, and workflow into the repository so an improvement improves everyone and the compounding loop actually compounds.
• Make every touchpoint legible. Work starts as an issue, runs through a headless agent in a sandbox, lands as a PR, and feedback lives on the PR, so the meta loop has durable surfaces to read.
• Separate fast inner-loop checks from expensive outer-loop checks; run the expensive ones once at the PR boundary and let the agent iterate on their results.
• Add verifiers: small, cheap, deterministic-in-practice LLM lint rules scoped by glob to catch every mistake you have ever seen an agent make, so the general review is not a laundry list.
• Bound every autonomous loop with a max-iteration count and a human handoff.
• Track manual takeovers and human PR comments as the metrics for autonomy, and PRs initiated without human input as the metric for automation, holding quality constant.
• Budget harness-engineering time explicitly; it is unplanned work that competes with shipping and never happens by accident.

Failure modes

In Mission Control

Mission Control demonstrates parts of this boundary through frozen executor configuration, durable Attempts, tool-call records, and controlled worker lifecycle. Harness interchangeability remains a contract-and-conformance claim wherever equivalent end-to-end adapters have not been proven on the same workload.

Retain this

• Harness engineering controls complete sessions through events, state, checkpoints, budgets, tools, and termination.
• Inner loops improve autonomy, outer loops establish trust, and meta loops improve the system without self-authorizing.
• Completion is a goal condition evaluated outside the model, not a phrase in terminal output.
• Hooks are integration points; policy remains in an external, independently testable enforcement path.
• An adapter is admitted only after conformance tests prove lifecycle, recovery, evidence, and prohibited-authority boundaries.
