18. Agent architecture: loop, MCP, tools, context, and memory

The previous chapters built the harness and the environment an agent runs inside. This chapter opens the agent itself. It explains what an engineering agent actually is once you strip away the marketing, how its execution loop turns an objective into actions and observations, how the Model Context Protocol connects it to capabilities without granting it trust, what a tool must promise beyond a JSON schema, how context is compiled rather than pasted, and how memory is admitted, corrected, and revoked. After reading it you should be able to draw a complete governed agent runtime on a whiteboard and defend each box.

The problem

A language model can read and write text. An engineering agent has to do far more: understand an authorized objective, observe the exact state of a repository, choose among tools, keep its execution state across a long task, respect policy, recover from failure, and leave evidence tied to the artifact it changed.

Teams often stuff all of those responsibilities into one prompt and call the result an agent. What they get is an opaque worker whose identity, authority, context, tools, memory, and model behavior cannot be versioned, revoked, or evaluated independently. When it produces something wrong, nobody can tell whether the model, the instructions, the retrieval, the memory, a tool adapter, the policy, the environment, or the retry loop caused the failure. The production question is therefore not "how do we write a better prompt?" It is "how do we construct a governed, observable, replaceable runtime around a fallible reasoning component?"

The problem exists for structural reasons. A model call does not by itself provide durable application state, identity, authority, or recovery; a provider may hold message history for you, but the factory still owns the authoritative state and still decides what enters each request. Context windows are finite, and everything that competes for the window (repository content, retrieved documents, MCP resources, tool descriptions, tool results, prior agent notes) can be wrong, stale, malicious, or irrelevant. The same model behaves differently when any prompt, tool schema, dependency, provider version, context item, or runtime policy changes. And adding agents adds specialization and parallelism at the price of hand-off loss, correlated error, duplicate work, cost, deadlock, and blurred accountability. A protocol can make capabilities interoperable, but it cannot decide which capability is safe for this user, this repository, this task, at this moment. All of that has to be owned by the surrounding system.

How it works

An agent is a goal-directed worker

Start with the plain definition. An AI agent is a system that can interpret a goal, reason about the work, use tools, take actions, observe results, and continue until it reaches a completion or escalation condition. An autonomous agent can take many such steps without a human instruction at each one, but still operates inside permissions, policies, budgets, and escalation boundaries. An agentic workflow is a structured sequence in which one or more agents reason, use tools, decide, and complete work toward an objective; orchestration coordinates which agent does which task, in what order, with what context, permissions, dependencies, and completion conditions. Tool use is how an agent touches external systems such as GitHub, Jira, CI/CD, databases, cloud environments, and observability platforms.

Behind those definitions sits the idea that organizes the whole chapter: an engineering agent is not a model with a long prompt. It is a versioned composition of eleven parts.

identity + objective + instructions + model profile + tools + context + memory view + policy + budgets + state + evaluation profile

The canonical taxonomy calls this an Agent Definition: the configuration that fixes an agent's purpose, instructions, tools, permissions, and behavior, with its role, capabilities, policies, goals, permissions, tool access, model configuration, autonomy level, escalation rules, and success criteria. Change any material component and you have a different worker; evidence from an earlier Attempt may no longer apply. A model name alone is never a sufficient reproducibility record.

Think of a surgeon on shift. The surgeon supplies judgment; the hospital supplies the badge, the operating list, the protocols, the checked-out instruments, the chart, the consent forms, the theatre time, and the audit trail. Nobody calls that "a surgeon with a long set of instructions." The institution around the person is what makes the judgment safe to act on.

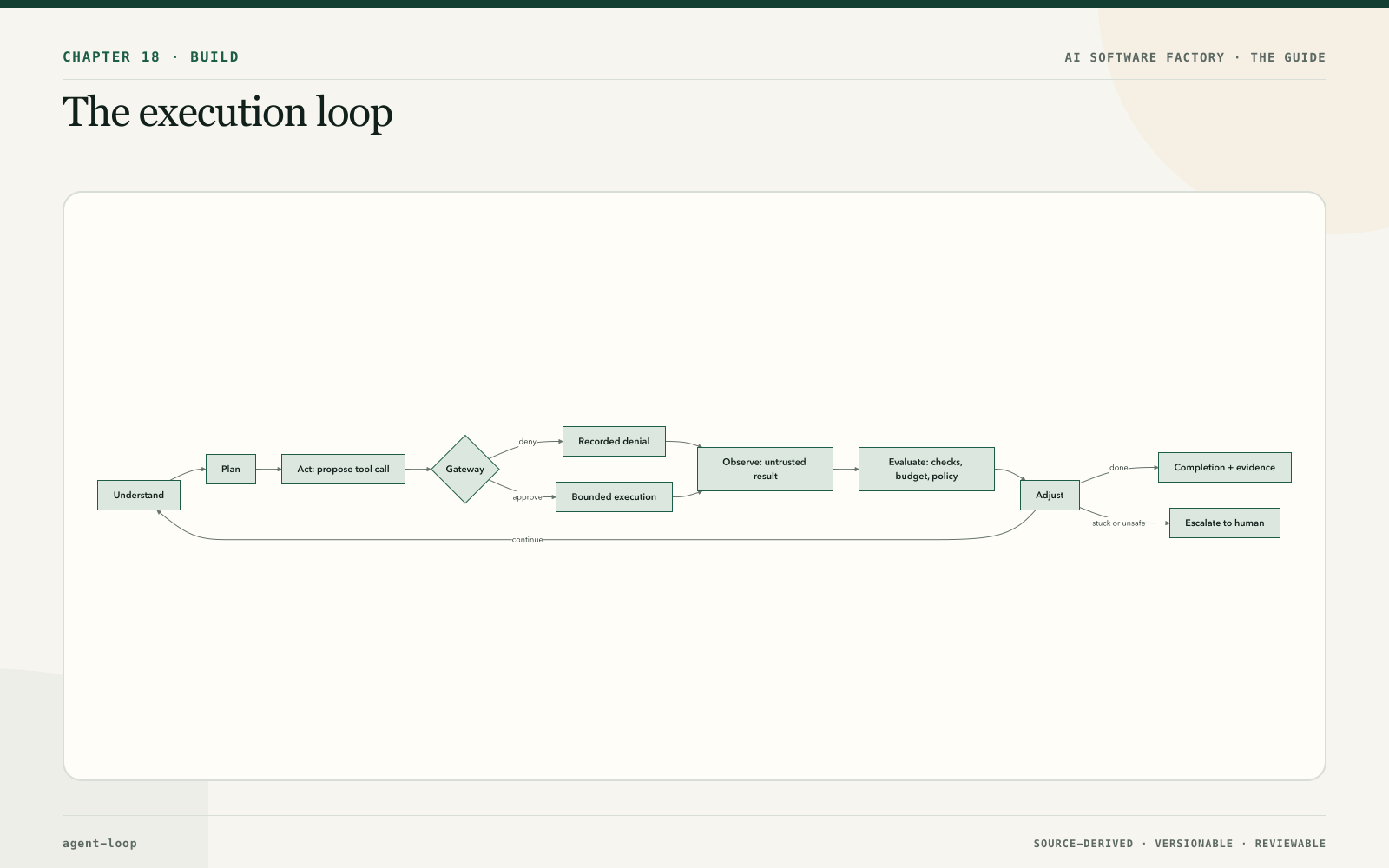

The execution loop

Inside the Harness, the Agent runs a cycle. The taxonomy names it the Agent Loop, also called the Execution Loop: understand → plan → act → observe → evaluate → adjust, repeated until the goal is met or an escalation condition is reached. Each step has a concrete meaning in a factory.

Understand means reading the frozen objective and the compiled context, not the raw repository. Plan means choosing the next bounded step, which may be revising the Plan the human approved but never silently widening it. Act means proposing a tool call. Observe means receiving the tool's result as an untrusted observation. Evaluate means checking the observation against acceptance criteria, budgets, and policy, with deterministic checks outside the Model rather than the Model's own opinion. Adjust means deciding whether to continue, retry, replan, stop, or escalate. The loop decides the next action; the workflow around it, covered in chapter 14, owns durable progress and authority.

The taxonomy names what surrounds the loop. Context management supplies the right code, documents, history, state, and information at the right time; context window management decides what fits. Control mechanisms are the guardrails: permissions, approvals, policies, budgets, and human-in-the-loop checkpoints. A guardrail is any control that limits or redirects agent behavior; a policy engine evaluates rules and decides whether an action may proceed, needs approval, or must be blocked. The execution environment is the sandbox, container, or workspace where the agent runs commands and changes code; sandboxing isolates it so a mistake cannot reach what it should not. State management tracks progress across the loop, error recovery retries, repairs, or replans after failure, and observability traces decisions, actions, latency, failures, and cost.

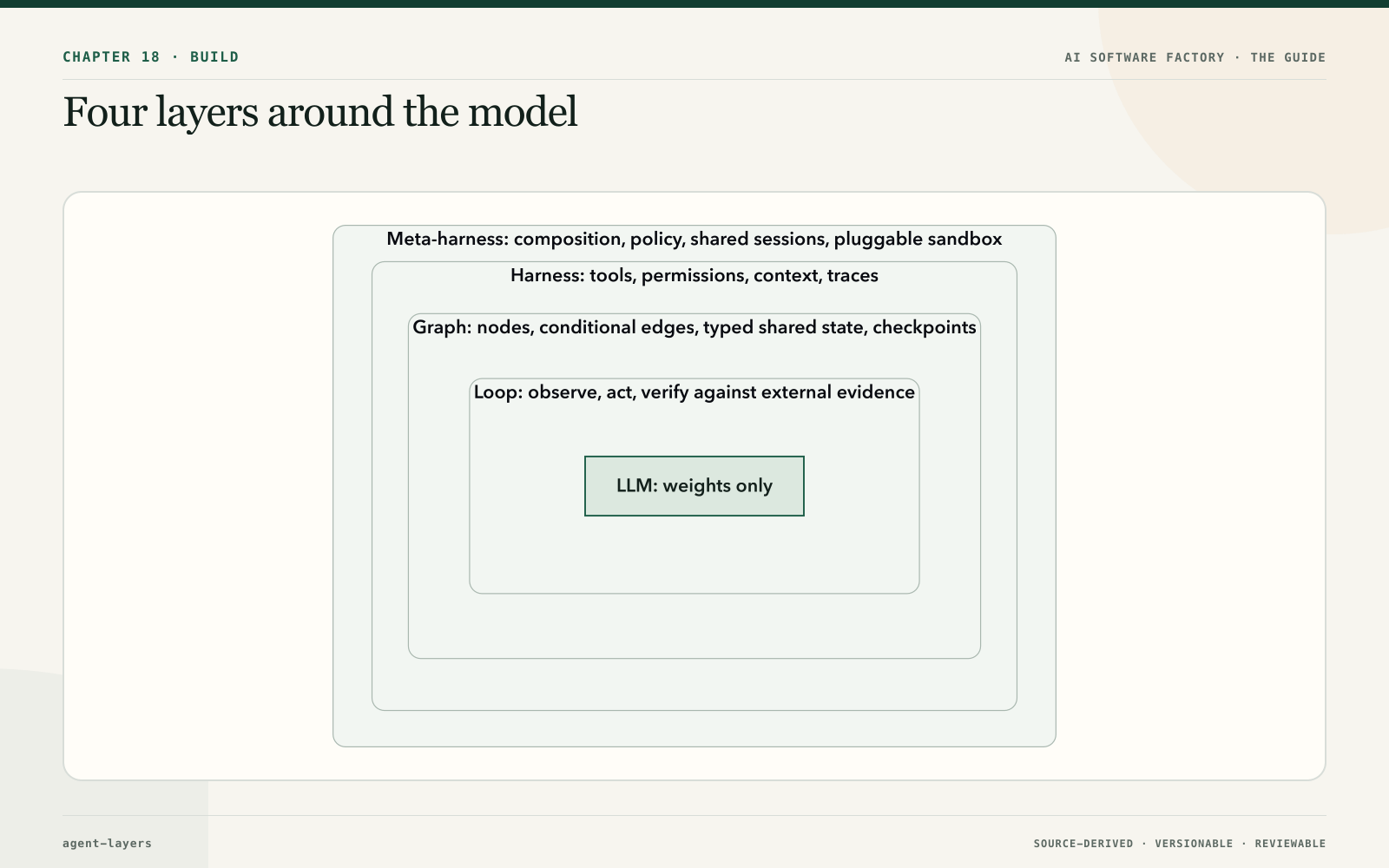

Model, Agent, SDK, Loop, Graph, Harness, Runtime, and Control Plane

Production failures are repaired faster when each boundary has one name. The Model supplies reasoning and generation. The Agent is the goal-directed worker. The Agent Loop is its bounded plan-act-observe-evaluate cycle. The Agent Harness governs how that worker interacts with context, models, tools, state, permissions, budgets, and external systems.

An Agentic SDK is the developer toolkit used to construct this behavior. It may supply Agent definitions, the Loop, a Harness Runner, tools, handoffs, guardrails, sessions, tracing, Work Graph helpers, or Runtime integrations. It can implement several boxes in the architecture without becoming a canonical box itself. Pin and qualify each supplied implementation under the Factory Version rather than treating the SDK name as the identity of the system.

The Work Graph represents nodes, dependencies, branches, joins, gates, interrupts, cycles, failure transitions, and terminal states. The Orchestrator advances that graph across Agents, deterministic work, and human waits. Graph Engineering designs the topology; Loop Engineering improves iteration inside a node.

The Runtime hosts execution and provides process lifecycle, persistence, leases, checkpoints, resume, concurrency, filesystem and network lifecycle, and recovery infrastructure. The Sandbox isolates the effects of an Attempt. The Control Plane owns enterprise identity, authority, policy, approvals, budgets, revocation, evidence requirements, promotion, and release. A component can enforce a decision locally without owning the authority that created it.

The same product may package several boxes together, but the responsibilities and immutable identities stay separate. An Agent identity is not a Model identity. A Harness version is not a Runtime Artifact. A Runtime identity is not a Sandbox identity. A Factory Version records the qualified composition without collapsing those records.

Use five questions before changing the model or prompt:

1. Was the reasoning wrong? Inspect the Model route and context.
2. Was iteration or stopping wrong? Inspect the Agent Loop.
3. Was the route or dependency wrong? Inspect the Work Graph and Orchestrator.
4. Was a tool, permission, context, state, or lifecycle control missing? Inspect the Agent Harness and Capability Implementations.
5. Did execution fail to start, survive, resume, isolate, or obey enterprise authority? Inspect the Runtime, Sandbox, and Control Plane respectively.

The full definitions, the three common meanings of “harness,” capability examples, and the executive explanation are in Execution boundaries and canonical terminology.

Six layers of a working agentic system

A second public model cuts the same system by production question rather than by nesting. Its premise is that the model sits inside a larger operating system, that each layer answers a different question, and that not every workflow needs every feature on day one. The table keeps the six rows and maps each to the chapter of this guide that owns it.

Three lines from the source are worth carrying as they stand. On layer three: anything with a known right answer stays deterministic; the model reasons and explains, code does the math. On layer four: trusted context is most of an agent's success, and skipping it is how an agent ends up hallucinating. On layer five: correctness needs a number before anything ships. And the closing line is the reason this chapter treats the composition rather than the model as the thing you version: the durable asset is the harness (workflow knowledge, tools, context, evaluation, and controls); models and platform services can change.

Reasoning is separated from authority

The single most important design rule is that the Model proposes; governed authority and deterministic enforcement dispose. The model can interpret intent, form hypotheses, choose among allowed options, and propose a tool call. It cannot expand its own scope. Before anything executes, a qualified gateway validates the acting identity, the input schema, the policy, the repository and path scope, the risk class, the budget, the approval state, the idempotency strategy, and the environment. The result comes back as an observation, never as trusted instructions. And the Harness records both approved and denied calls, so a reviewer can reconstruct what the agent attempted, what actually ran, and why.

The execution manifest is frozen before work begins

Every Attempt should resolve all of its mutable configuration into one immutable execution manifest before the first model call. The manifest is a contract, not a log assembled afterwards; runtime events and evidence must point back to it. A minimal manifest looks like this.

attempt_id: attempt-123
work_order_revision: sha256:...
plan_revision: sha256:...
agent_version: agent-implementation-v4
model_profile: code-reasoning-standard-v2
instruction_bundle: sha256:...
tool_grants:
  - name: repository.read_file
    version: 3.2.0
    schema_hash: sha256:...
    scope: read
context_lock: sha256:...
memory_snapshot: sha256:...
policy_bundle: engineering-medium-risk-v5
budgets:
  wall_clock_seconds: 1800
  attempts: 3
evaluation_profile: repository-change-v7

The AI concepts an architect must actually hold

The discipline this chapter belongs to is AI Engineering: the engineering practice that turns model capability into reliable systems through data, knowledge, semantics, context, agents, tools, structured outputs, routing, loops, evaluations, and runtime controls. Model prompting is one technique within that discipline, not the discipline itself. You do not need a history of model architectures to design a governed delivery system. You need enough model literacy to bound context, select inference profiles, evaluate behavior, control data, and plan capacity. The useful question is never "which model is smartest?" but "which qualified configuration meets this task's quality, safety, latency, availability, data, and cost contract?" The concepts that change factory decisions are these.

Keep the four improvement mechanisms distinct, because they have different owners, risks, rollback paths, and evidence. Training changes learned parameters. Adaptation specializes a model. Retrieval supplies current external information. Prompting supplies task instructions and examples. Do not call every improvement "training."

Economics follow from the same concepts. End-to-end latency is the sum of queue time, context retrieval, prompt construction, time to first token, generation, tool calls, validation, and retries; throughput depends on provider capacity, token volume, concurrency, batching, and model profile. Caching cuts cost but is only safe when identity, tenant, purpose, policy, source, and configuration versions are all in the key. Track reserved and actual tokens, model and tool calls, elapsed and queue time, evaluator cost, environment cost, and human attention per accepted outcome. A cheaper call that doubles retries is the expensive system.

Model classes (general-purpose, code-specialized, small local, reasoning-oriented, embedding, reranker, classifier, multimodal) are capability classes chosen by representative evaluation, data path, latency, cost, availability, tool and schema support, context behavior, and operational constraints; family names change faster than those decisions. Larger models help on hard tasks but raise cost, latency, and data exposure; local models improve control but add serving and capacity work; adaptation improves repeated domain behavior but raises data and rollout obligations. Choose the simplest qualified mechanism. None of this teaches training mathematics or certifies any model or provider; it is the literacy needed to make control, cost, and evidence decisions, and chapter 21 turns it into a router.

MCP is an interoperability boundary, not a trust decision

The Model Context Protocol (MCP) is a standard way to expose tools and contextual resources to AI systems through defined interfaces. For an executive audience the one-liner is enough: MCP gives agents a standardized way to discover and use enterprise tools and context. For an architect, the details matter, and the normative statements below are pinned to the stable 2025-11-25 specification; experimental features are labelled, and draft behavior must never silently redefine a production contract.

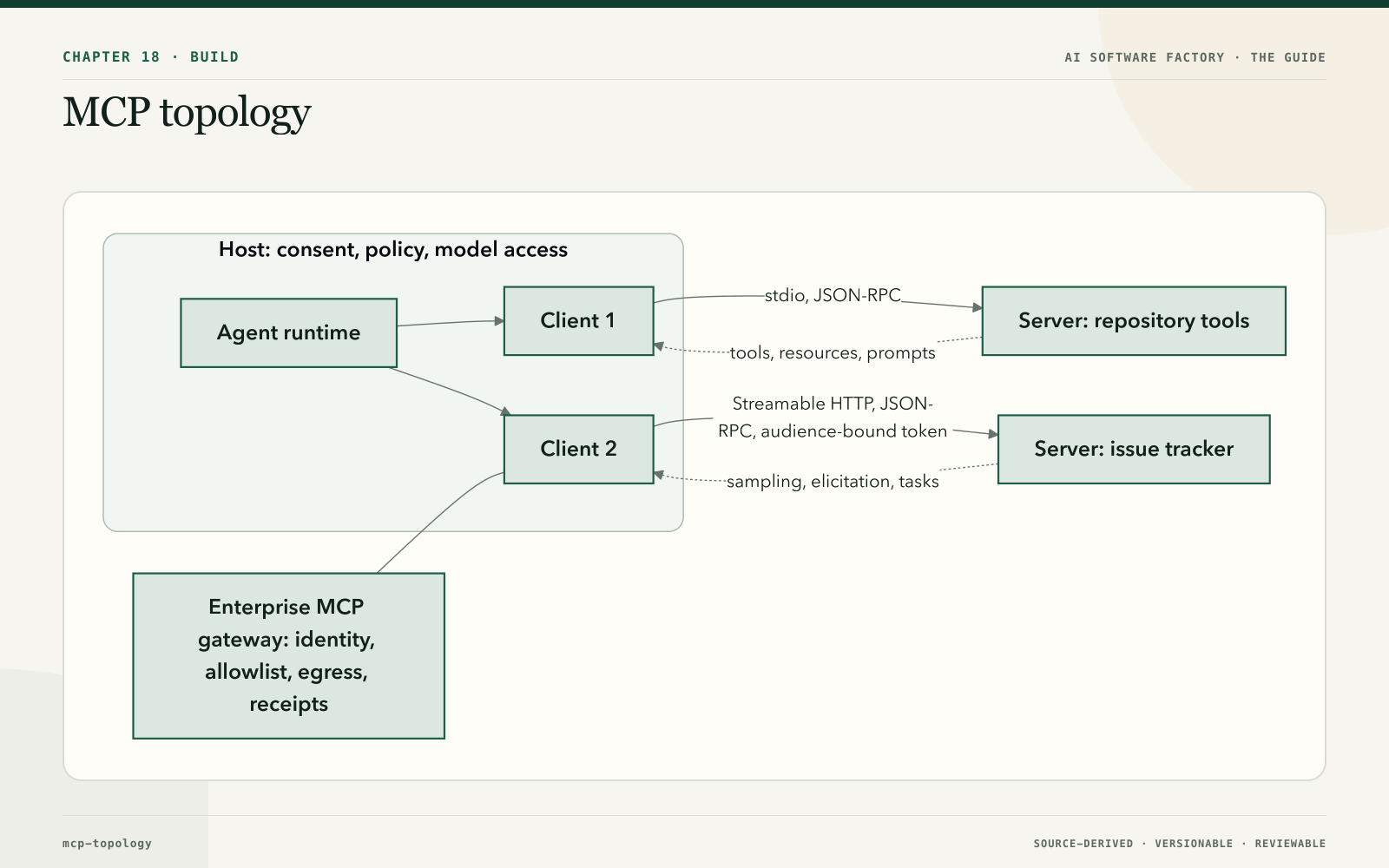

MCP uses a host–client–server architecture over JSON-RPC. The host is the application that coordinates model access, user consent, security policy, and context; it creates one client per server connection. The client negotiates the protocol version and capabilities, maintains the stateful session, and routes messages. The server exposes a focused set of capabilities. The session has a lifecycle: initialize with version and capability negotiation, operate, shut down. The stable specification defines two transports, local stdio and remote Streamable HTTP. A production contract must pin protocol version, transport, server identity, and negotiated capabilities; "supports MCP" is too vague to mean anything.

The analogy is a universal power socket. The standard guarantees the plug fits and the voltage matches. It says nothing about whether the appliance is safe, whether you are allowed to run it in this room, or whether it will set the curtains on fire. Capability negotiation proves both sides speak a compatible protocol. It does not prove a server is trustworthy, a tool is safe, or the current WorkOrder authorizes its use.

MCP's primitives carry different control expectations, and a factory should treat each differently.

One naming collision needs flagging. An MCP Task is a protocol-extension handle used to manage a long-running MCP operation, and it is not the same thing as the factory's Task: the domain Task organizes authorized WorkOrder execution and retains business and acceptance lineage, whereas the MCP Task tracks a single deferred request on one server connection. Do not let the former stand in for the latter in records or policy.

Every MCP server is three things at once: a software supply-chain dependency, an identity boundary, and a potential data-egress path. So the factory governs the connection, not only the individual call. An enterprise MCP gateway should demand a connection contract that answers ten questions.

Authorization over HTTP has its own rules. Access tokens must be audience-bound to the intended MCP server, requested with explicit scopes, and, following the specification's use of resource indicators, issued for that specific resource. Token passthrough, where a server forwards the client's token to unrelated downstream services, collapses trust boundaries and must not be treated as a shortcut. A scope increase should require fresh consent, not a silent renegotiation.

MCP solves interoperability, not governance

Be precise about the problem MCP actually solves. Before a shared protocol, every agent host had to integrate with every capability separately: N hosts times M tools, each with its own discovery, schema, invocation, and response format. MCP collapses that N×M integration problem into one contract for discovery, tool schemas, invocation, and responses. That is valuable, and it is all it does. Identity, authorization, scope, argument validation, policy, and auditability stay with the factory, exactly where they were before the protocol arrived.

MCP standardizes connectivity. It doesn't outsource governance.

It follows that MCP is not mandatory for every capability. Putting a service behind MCP buys reuse, discovery, consistent contracts, and portability across hosts; it costs another abstraction and another network hop. A high-throughput, stable, internal service that one runtime calls thousands of times an hour may be better served by a direct API adapter behind the same gateway. Decide per capability on reuse, interoperability, governance, latency, and operational cost, and record the decision.

MCP is an interoperability decision, not a religion. Either path passes through the same registry and gateway described below.

Tools are behavioral contracts

A tool is not safe because its arguments satisfy a JSON Schema. Its contract has to define behavior under success, failure, retry, cancellation, and partial completion.

Keep two error classes apart. A protocol error (malformed request, unknown method, invalid parameters) is not the same as a tool-execution error, where a well-formed request ran and the business operation failed. Structured failures let the model correct an input without hiding an operational or policy failure. The official tools specification covers validation, execution errors, access control, rate limiting, timeouts, and audit logging for exactly this reason. Output schemas matter as much as input schemas: a result the runtime cannot parse cannot be validated, and a result the runtime cannot validate should not become an observation the model trusts.

A tool contract is written from the platform's side. Seen from the agent's side, the same tool is an agent affordance: an interface or property deliberately created so that a capability is easier and safer for an agent to use than the human-facing alternative. A CLI or API where a human would use a UI; a structured query where a human would read raw logs; an environment manifest where a human would follow a setup page; a structured error where a human would read a stack trace. The result envelope and the two error classes above are affordances in this sense, and so is every field in the contract table that turns a guess into a fact the agent can act on. Chapter 26 scores a repository's affordances as part of its agent readiness, and the diagnostic is the same there as here: when an agent keeps stopping at the same step, the missing piece is usually an affordance, not a prompt.

The governed tool registry: where intelligence becomes authority

A model with no tools can only be wrong on paper. A model with a tool can be wrong in a repository, a ticket queue, or a production environment.

The moment a model gets a tool, intelligence becomes authority.

That is why capabilities do not reach an agent directly, whether they arrive over MCP or a direct adapter. They sit behind a governed tool registry and tool gateway. The registry is the catalog of capabilities the factory knows about; the gateway is the enforcement point every call passes through. Registering a tool means answering eight questions before any agent can see it.

Alongside those answers the registry carries the operational contract from the previous section: typed schema, timeout, rate limit, and audit behavior. Grants are then scoped to the task, not to the agent in general. A repository-analysis agent gets read access to one repository; it does not get deployment credentials because they happened to be available on the host. The same agent definition can hold different grants in different WorkOrders.

The controls that matter most at the tool boundary are enforced outside the model, in this order of precedence: identity, authorization, argument validation, resource scope, rate limits, timeouts, auditability, and approval requirements. None of them depends on the model's cooperation. A prompt cannot loosen a schema, and a persuasive retrieved document cannot widen a scope.

The model proposes the action. The platform decides whether it is allowed.

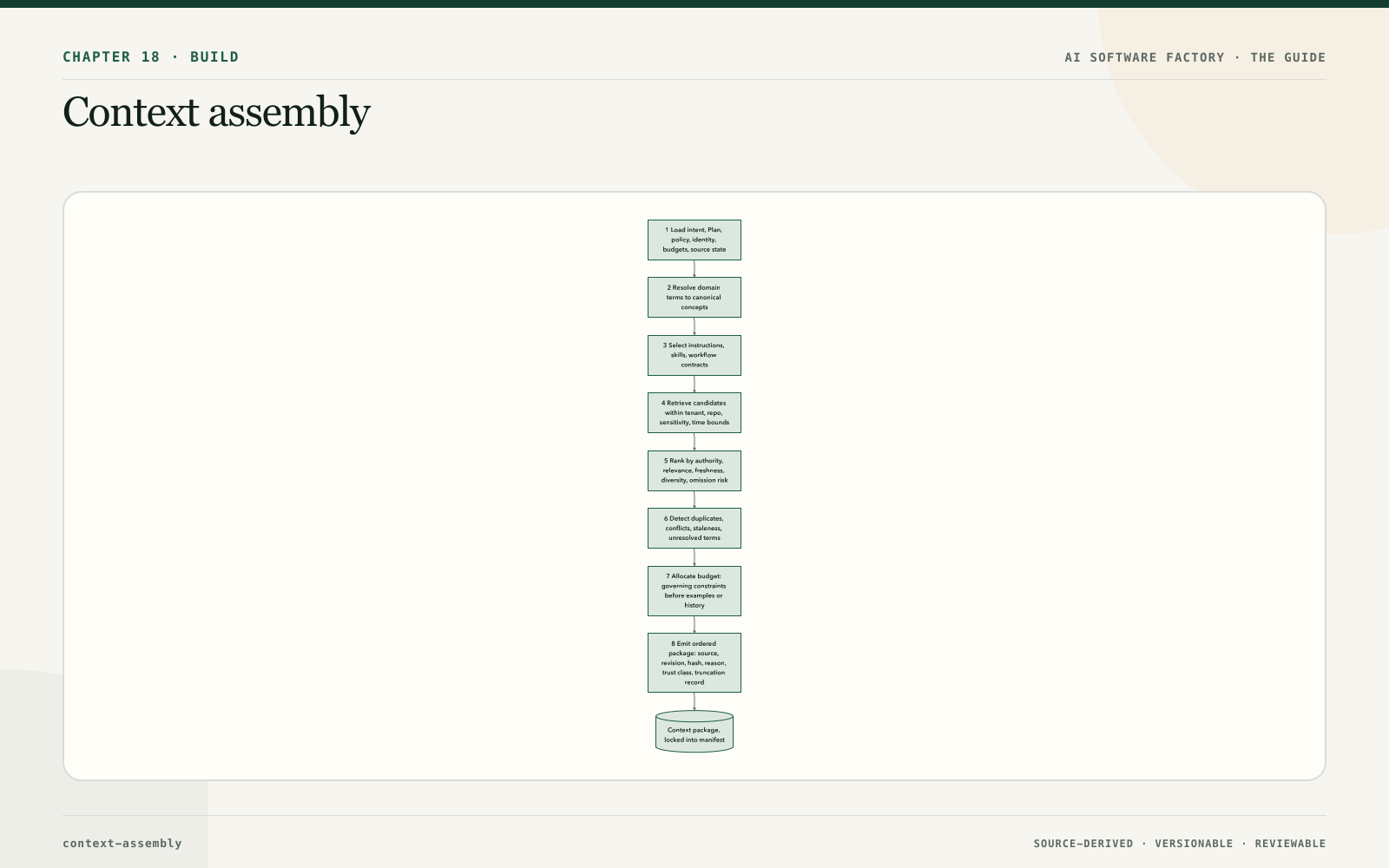

Context engineering is controlled compilation

Context engineering is the discipline of supplying an agent with the right information, instructions, tools, history, policies, and constraints at the right time. In a factory it is a compilation step, not a copy-paste. The context compiler selects the smallest sufficient set of trusted directives and relevant observations for one decision. More context is not automatically better: irrelevant material burns tokens, adds conflicting cues, and can bury the governing constraint. Think of it as packing a briefing folder for one meeting rather than wheeling in the whole filing cabinet.

Good context architecture keeps five categories visibly separate: instructions (trusted runtime directives), authoritative context (approved contracts, policy, identity, exact source state), reference context (documentation and retrieved knowledge), working context (transient hypotheses and scratch state), and evidence (observations tied to exact actions and artifacts). Retrieved text lives in the reference tier and can never promote itself into instructions or authority. Chapter 19 covers the pipeline that feeds step four and the full retrieval contract.

Four kinds of context, one governed input

The five trust categories say how much authority a piece of context carries. A second cut says where it comes from and how long it should live. Every item the compiler considers belongs to one of four types, and mixing them is how context windows fill with material nobody chose.

The goal for every step is the minimum high-quality set that is relevant, permission-aware, and attributable. A larger window is a larger budget, not an instruction to spend it.

Context is a governed input, not everything we can fit into the window.

The fourth row is the one teams get wrong. Durable memory must be deliberately promoted: something enters it because an owner or a governed process decided it should, with provenance attached. If every previous model output silently becomes permanent truth, memory turns into one more source of stale and incorrect context, and a bad hypothesis from last month is retrieved next month as a fact. The admission flow in the next section is what "deliberate" means in practice.

Memory is governed, typed, and revisable

Memory lets a system preserve useful information across steps or sessions: mission state, past decisions, user preferences, system knowledge, previous outcomes. Retrieval-augmented generation (RAG) combines model reasoning with retrieved enterprise knowledge such as documentation, tickets, code, and operational records. Both are valuable, and both become dangerous when they turn into a shadow system of record. Memory should improve future decisions; it must never rewrite operational records, which remain authoritative and which memory may only reference.

The table's rows have precise meanings. Session memory is Working Memory: the short-lived task and conversation state required for the current run, including intermediate artifacts and tool results, which should be cleared, compacted, or deliberately persisted when the run ends. Episodic Memory is the attributable record of past events and experiences, including when they occurred and which outcome followed; a prior episode is evidence about history, not a universal instruction. Semantic Memory holds durable facts, concepts, and relationships retrieved by meaning, and similarity there does not prove truth, freshness, permission, or authority. Procedural Memory is versioned reusable knowledge about how to perform a task, normally expressed as a skill, workflow, runbook, or instruction set, and it must be evaluated and lifecycle governed. Cutting across the semantic row is Temporal Memory: time-aware facts and relationships that preserve when a claim was valid and how it changed, so that a current answer does not silently combine incompatible historical states.

Procedural memory itself splits two ways, and the split decides what enters the context window on every turn. A rule is always-on steering that the harness pushes into context unconditionally (an eager push): the repository's conventions, the actions the agent must never take, the house style. A skill is loaded only when the agent judges the task relevant (a lazy push): the procedure for a class of work, with its scripts and examples. Rules cost context on every run and cannot be missed; skills cost nothing until needed and depend on discovery. Guidance that belongs in a rule but is written as a skill gets skipped; guidance that belongs in a skill but is written as a rule bloats every prompt. Both are packaged, versioned, and installed as context as code; Chapter 11 covers the manifest, registry, and lifecycle that make that true.

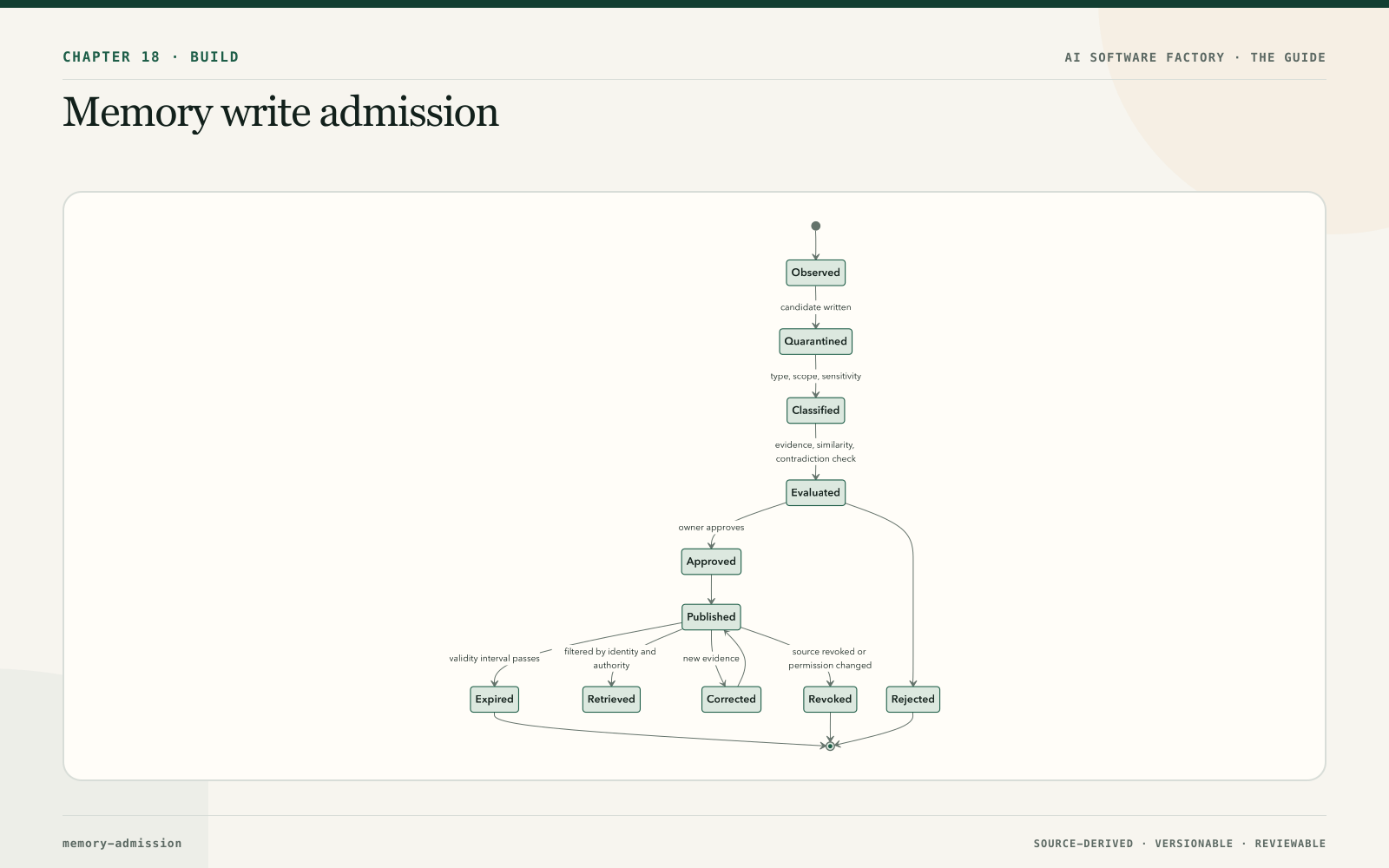

A safe memory lifecycle is a write-admission flow, and memory quality depends far more on it than on vector search quality.

Every write retains source, scope, time, confidence, sensitivity, owner, lifecycle state, and the evidence that supported promotion. Retrieval filters by the current identity and authority, returns citations and a "why retrieved" reason, and exposes contradictions instead of silently picking a winner. Deletion, correction, expiry, tenant isolation, and permission changes are first-class lifecycle events: a correction links the old claim to the new one and to the evidence that changed it, so a reader can see the history rather than a rewritten past.

Use multiple agents only for a measurable reason

Add another agent when independent verification, parallelism, context isolation, or specialized expertise produces a measurable gain, never to imitate an organization chart. Every hand-off needs an explicit input contract, output schema, authority, budget, termination condition, and owner. Shared durable state belongs in the runtime, not in private message history. Independent validation needs a separate evidence path, different incentives or tools where appropriate, and protection against correlated failure; a different persona name is not independence. And evaluate the complete configuration and workflow, because a model benchmark cannot show whether context selection, tool policy, memory, recovery, or coordination works. Chapter 23 develops the patterns. None of this diagnosis works without stable identifiers: every record — manifest, Attempt, artifact, policy decision — has to share them, or a reviewer cannot trace a failure back to its cause. That is also why a small governed agent stays easier to trust and improve than one whose tools, memory, and context keep expanding without bound; growth in composition is a cost to justify, not a default.

How to build it

Prefer deterministic code for schema validation, parsing, hashing, routing rules, state transitions, policy enforcement, and admission gates. Use the model for ambiguous interpretation, planning, comparison, and generation. Then assemble the runtime in this order.

1. Resolve the WorkOrder and Plan into a frozen execution manifest covering identity, instructions, model profile, tool grants, MCP connections, context lock, memory view, policy, budgets, and evaluation profile, and store its digest with the Attempt.
2. Establish only approved tool and MCP connections, with least privilege, under a signed connection contract; pin protocol version, transport, server identity, and negotiated capabilities.
3. Register each tool with the full behavioral contract above, classify its side effects, and decide its approval behavior by risk class before any agent can call it.
4. Compile a provenance-rich context package with the eight-step algorithm; keep the five trust categories separate; record truncation.
5. Build the authorized memory view from a snapshot filtered by tenant, identity, scope, and lifecycle state.
6. Run the execution loop inside the policy gateway with cancellation and recovery; record every proposed call, approval, denial, result envelope, and receipt.
7. Produce artifacts, trace, checkpoints, receipts, and denials on an independent evidence path that points back to the manifest.
8. Admit delivery only through policy and human authority.
9. Route candidate memories through quarantine, classification, evaluation, approval, and publication, with correction, expiry, and revocation wired in from the first day.

Before shipping, weigh the choices that shape the composition.

Tool access without context bloat

The registry and gateway above decide whether a call is allowed. A separate build decision is how much of the tool catalog the model has to carry in its head to make the call at all, and it dominates cost once the catalog is large. Standard MCP loads every tool schema into every session. Uber's engineering team, which routes more than a thousand internal and SaaS MCP servers through one gateway for central authentication and policy, published the numbers: a session with a hundred or more tools carries roughly 50–70K tokens of schema in its first prompt, re-sent on every turn. SaaS vendors make it worse by exposing everything: one workspace suite alone was 49 tools and about 22K tokens of schema, a messaging server 34 tools, a project tracker 46. Two or three vendor servers put more schema in the window than the file being edited, before the user has typed anything. These are one organization's measurements, but the mechanism is universal.

Two fixes remove the schema from the context rather than trimming it. The first is CLI tool resolution: the model runs a shell command; a command-line tool resolves and invokes the MCP tool against the gateway at call time. Every server is projected as a CLI command, and the schema in context drops to near zero because the model needs to know only the command, not the full contract. The second is tool search: the model searches the catalog and loads only the tools it needs for the task, which scales to thousands of tools without the selection-accuracy decay that a huge always-loaded catalog produces. Both keep the gateway exactly where it was: identity, allowlist, egress, and receipts still sit on the single path every call takes.

Once tools are callable from the shell, a third pattern becomes available. Code-mode lets the model batch many actions into one script. Chatty protocols, such as submit a query, poll its status two to five times, then fetch the result, run inside a subprocess, and only the summary returns to the context. Uber measured five identical SQL queries in one session, tool-calling versus code-mode:

The savings come from removing the schema initialization, the multi-turn polling, and the step-by-step reasoning between calls, not from shrinking the payload; the last row is a wide result that never entered the context at all. For bulk workflows N model turns collapse into one script and more than 90% of the tokens disappear. The team ships pre-built code-mode skills for its most-used servers so that the cheap path is the default path, and routes SaaS MCPs through the same gateway, exposed as CLIs, with a code-mode skill per server for the common workflows.

The factory rule that falls out: the gateway governs every call; the catalog is resolved at call time, not preloaded; and anything that polls, pages, or loops runs in code and returns a summary. A tool the model cannot see costs nothing until it is needed, and a tool the model can see costs tokens on every turn whether it is used or not.

Finally, secure the data path. Model inputs and outputs carry source code, credentials, personal or regulated data, and proprietary context, so define allowed providers, regions, retention, training and data-use terms, redaction, encryption, and logging. Embeddings and caches inherit the sensitivity of their sources, and bias and safety evaluation must match the real users, languages, repositories, and decisions affected.

Failure modes

The recurring anti-patterns are granting every discovered MCP tool, treating tool annotations as trusted policy, passing full conversation history to every server, retrying consequential tools without idempotency, storing every agent message as memory, and adding agents to compensate for an undefined workflow. Beneath those sit the runtime failures an architect must plan for.

Catch these before production by evaluating complete configurations (model, prompt, tools, context, harness, environment, policy, evaluator) with representative cases, deterministic checks, calibrated graders, repeated trials, confidence intervals, adversarial cases, and outcome slices. A high average can hide a catastrophic failure in a critical slice; no single score establishes truth, so retain disagreements, uncertainty, and counterevidence, and promote only on predefined improvement and non-regression criteria. When something does go wrong, the incident framework in chapter 36 asks which layer failed: intent, context, model, tool, state, policy, or evaluation. The separation of components in this chapter is what makes that question answerable.

In Mission Control

At commit b31e275, Mission Control contains agent-platform components at different levels of maturity. This describes that pinned commit only.

Implemented. Agent templates, versions, instances, and identities give versioned registry records; the older agent model also stores role, allowed task types and tools, budgets, status, and heartbeats. A context router combines deterministic rules, classification, confidence, capacity, and budget to choose clarification, deferral, a single Task, or coordinator decomposition. The Context Registry supports versioned packages, semantic version ranges, repository manifests, lock files, published content hashes, installation records, verifiers, and idempotent activation receipts; executor-facing activation rejects unpublished or hash-mismatched content and links the locked package set to a WorkflowRun. That is a real example of compiling context rather than copying prompt text. Tool calls are recorded with risk policy applied, and the executor adapter freezes repository root, allowed paths, isolation, timeout, and model. Provider packages implement structured tool-call formats.

Partial. Memory. packages/memory implements session, project, and global in-memory abstractions; Convex records run episodes and execution traces and can consolidate batches into knowledge-graph nodes. The GraphRAG proposal itself lists what is missing: provenance, contradiction handling, permission-aware retrieval, ingestion checkpoints, evaluation, and a correction lifecycle. The live audit described an empty operational graph, so the proposal is not a production memory system.

Later current-status update. At Mission Control ed77c46, one exact Context7 query-docs read is qualified through a versioned Tool Version, scoped Tool Grant, Execution Profile, canonical Attempt, broker, durable receipt, schema/currentness checks, and independent verification. Discovery remains separate from authority. The evidence does not qualify arbitrary servers or operations, writes, broad credentials, or harness-native MCP; those remain future. A per-Attempt manifest digest covering all eleven components is also still to be built.

Retain this

• An agent is a versioned composition of identity, objective, instructions, model profile, tools, context, memory view, policy, budgets, state, and evaluation profile, not a model with a long prompt; change any component and evidence from an earlier Attempt may no longer apply.
• Diagnose a failure by boundary: Model (reasoning), Loop (iteration or stopping), Work Graph and Orchestrator (routing), Harness and Capability Implementation (operating behavior), Runtime (execution survival), Sandbox (isolation), or Control Plane (authority and governance). Model capability is not Agent capability.
• The model proposes; only the runtime authorizes. Every call passes a gateway (identity, authorization, validation, scope, rate limits, approval) before it executes, and the execution manifest is frozen before the first model call so every event and piece of evidence points back to it.
• MCP standardizes connectivity, not governance, and solves the N×M integration problem and nothing more. Choosing it over a direct call is an interoperability decision, not a religion.
• Context is a governed input, not everything we can fit into the window: the minimum relevant, permission-aware, attributable set for one decision. Durable memory is promoted deliberately, never silently.
• Add another agent only for a measurable gain in verification, parallelism, isolation, or expertise, and evaluate the whole configuration, never the model alone.
• Traceability depends on every record sharing stable Attempt, manifest, artifact, and policy identifiers; a small governed agent stays easier to trust and improve than one whose tools, memory, and context keep expanding.

Go deeper

• Related chapters: 14. Durable execution for the workflow around the loop; 15. Coding harnesses and agent protocols for where MCP sits beside ACP and AG-UI; 19. Data, knowledge, semantic, and context engineering for the retrieval pipeline; 21. Models for routing; 23. Agent and loop engineering for multi-agent patterns; 33. Security for injection and tool poisoning; 40. Governed learning for memory promotion.
• MCP 2025-11-25 baseline: specification, architecture, lifecycle and capability negotiation, transports, authorization, tools, resources, prompts, sampling, elicitation, tasks (experimental), changelog.
• Mission Control at b31e275: agent identities, agent versions, context manifests, context activation, context router, memory lifecycle, graph-assisted memory proposal, plugin and MCP guidance.
• Sources: Jay West, "Key terms and definitions" capability taxonomy (execution loop, agent definitions, harness terms); Jay West, factory architecture notes (the four context types, the governed tool registry, MCP versus direct calls); the AI Software Factory study guide, chapter 6 terminology; the agent platform technology glossary (MCP, FastMCP, durable context patterns); the "Factory in one line" notes on harness ownership and the incident layer list.
• Source materials: public architecture models covering Agent Loops, Work Graphs, Harnesses, production agent systems, tool gateways, context, verification contracts, and agent affordances.
• Glossary.
